Nested and repeated columns

Beta Available for BigQuery projects. On Lightdash Cloud, ask Lightdash support to enable it for your organization. For self-hosted deployments, see Deploy and generate. What Beta means.

BigQuery columns can contain non-repeated RECORD values (STRUCT), repeated records (ARRAY<STRUCT>), or repeated scalar values (ARRAY<type>). Define record leaves with dotted column names in dbt YAML. Lightdash keeps leaves from non-repeated records on the model and exposes repeated values as virtual tables joined with UNNEST. Use How column shapes map to fields for a visual overview and Define nested columns in YAML for the complete configuration. Refer to Virtual tables, Query behavior and grain, Query warnings, Pre-aggregates, and Known limitations as needed.

How column shapes map to fields

Non-repeated RECORD (`STRUCT`)

A leaf below a non-repeated record is an ordinary dimension on the model with its dotted name. In this orders model, - name: customer.address.city exposes only the city leaf. Add separate entries for customer.customer_id, customer.name, or customer.address.street if you also want them as fields.

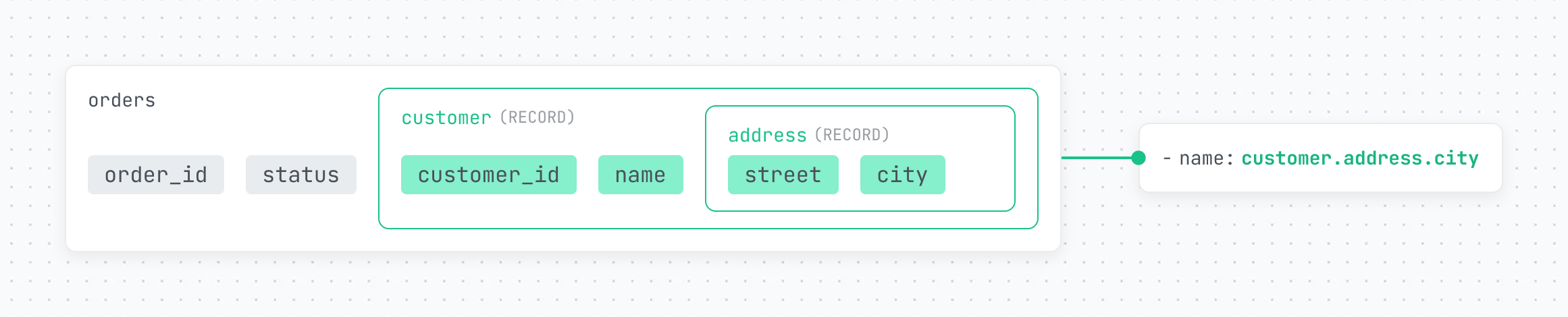

Orders table with a customer record containing an address record, mapped to the dotted YAML column customer.address.city

The customer.address.city dimension has the SQL path orders.customer.address.city and the field ID orders_customer__address__city. Lightdash gets its type from the warehouse catalog, so meta.dimension.type is optional. An explicitly declared type takes precedence over the catalog type.

REPEATED RECORD (`ARRAY<STRUCT>`)

A repeated column with at least one listed leaf becomes a virtual table. In this orders model, line_items.sku becomes the sku dimension on orders__line_items. The price leaf is not exposed because it is not listed in YAML.

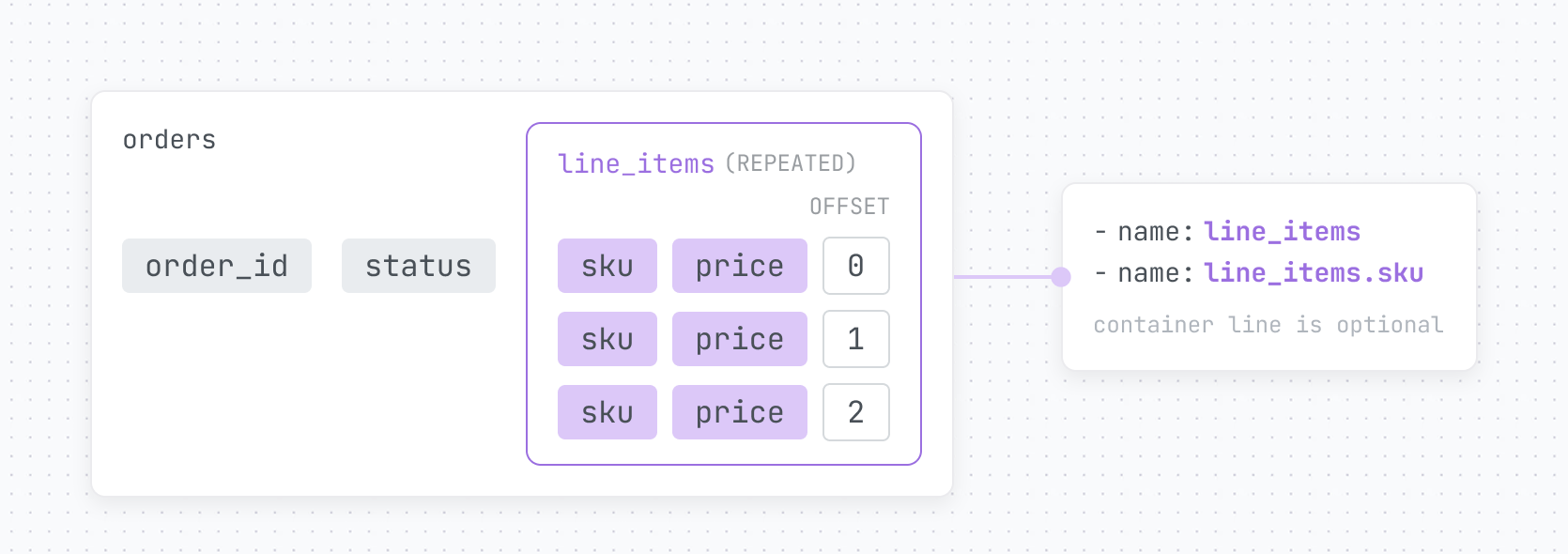

Orders table with three line item records and their array positions, mapped to line_items and line_items.sku entries in YAML

The - name: line_items container entry is optional. Include it when you want to set the virtual table’s description or meta.dimension.label. Every virtual table also gets an offset dimension for the array position, so this example exposes sku and offset on orders__line_items.

Repeated scalar values (`ARRAY<type>`)

An array of scalars has no leaves to list. Add the array column itself to dbt YAML. For example, if the orders model has a tags column with the type ARRAY<STRING>, add:

columns:
  - name: tags

Lightdash creates the orders__tags virtual table with a string dimension named value and the number dimension offset. Reference the value as orders__tags.value in filters and pre-aggregates or as ${orders__tags.value} in custom SQL.

Define nested columns in YAML

Add one YAML entry for each record leaf or scalar array you want to expose. Write a leaf’s full path from the top-level column, separating each level with a dot—for example, customer.address.city. Lightdash gets the structure from your BigQuery table, so you do not need to specify whether each level is a STRUCT or ARRAY in YAML. Only record leaves and scalar arrays listed in YAML become fields. The example below extends the orders model from the diagrams by exposing line_items.price and the tags scalar array. The warehouse table has one row per order, a customer record, a repeated line_items record, and a tags scalar array:

models:
  - name: orders
    config:
      meta:
        primary_key: order_id
    columns:
      - name: order_id
      - name: status
      # Non-repeated RECORD leaf: an ordinary dotted dimension on orders
      - name: customer.address.city
      # Optional metadata for the orders__line_items virtual table
      - name: line_items
        description: One row per item in the order
      # Leaves below the REPEATED RECORD belong to orders__line_items
      - name: line_items.sku
      - name: line_items.price
        config:
          meta:
            metrics:
              total_revenue:
                type: sum
      # A repeated scalar becomes the value dimension on orders__tags
      - name: tags

models:
  - name: orders
    meta:
      primary_key: order_id
    columns:
      - name: order_id
      - name: status
      # Non-repeated RECORD leaf: an ordinary dotted dimension on orders
      - name: customer.address.city
      # Optional metadata for the orders__line_items virtual table
      - name: line_items
        description: One row per item in the order
      # Leaves below the REPEATED RECORD belong to orders__line_items
      - name: line_items.sku
      - name: line_items.price
        meta:
          metrics:
            total_revenue:
              type: sum
      # A repeated scalar becomes the value dimension on orders__tags
      - name: tags

See Deploy and generate for how lightdash generate handles nested and repeated columns.

Virtual tables

A repeated record becomes a virtual table when at least one of its leaves is listed in YAML. A scalar array becomes a virtual table when the array column itself is listed. Lightdash joins each virtual table with UNNEST. A leaf belongs to the virtual table of its deepest repeated ancestor. For example, line_items.sku becomes the sku dimension on orders__line_items. There is no nesting-depth limit: if each line item also contains a repeated discounts record, line_items.discounts.code belongs to orders__line_items__discounts.

Names and field references

Table name: <model>__<column>. Nested virtual-table names continue the chain, as in orders__line_items__discounts. The separator is two underscores.
Sidebar label: <Model label>: <Column label>. A nested label continues the chain, as in Orders: Line items: Discounts.
Field ID: <virtual table>_<dimension>, as in orders__line_items_sku.
YAML reference: use the virtual-table name as the table prefix. For example, use ${orders__line_items.price} in metric SQL and orders__line_items.sku in filters and pre-aggregates.

Every virtual table also has a number dimension named offset, which is the element’s zero-based position in its array. If a generated virtual-table name clashes with any other table in the Explore, that Explore fails to compile and the error names the conflicting table.

Join behavior

Lightdash joins a virtual table with a left join and ON TRUE. The relationship is one-to-many, so a parent with an empty or NULL array keeps its row with NULL leaf values. A virtual table has no primary key and cannot declare one; its grain is the parent row multiplied by the array element. When a model is joined into another Explore under an alias, or joined more than once, its virtual-table names and labels follow that alias. For example, aliases named online_orders and store_orders produce online_orders__line_items and store_orders__line_items, labeled Online orders: Line items and Store orders: Line items.

Generated SQL

For a query that selects customer.address.city, line_items.sku, and total revenue, Lightdash generates one UNNEST join:

SELECT
  `orders`.customer.address.city AS `orders_customer__address__city`,
  `orders__line_items`.sku AS `orders__line_items_sku`,
  SUM(`orders__line_items`.price) AS `orders__line_items_total_revenue`
FROM `my-project`.`analytics`.`orders` AS `orders`
LEFT OUTER JOIN UNNEST(`orders`.line_items) AS `orders__line_items` WITH OFFSET AS `orders__line_items__offset`
  ON TRUE
GROUP BY 1, 2

Query behavior and grain

The query grain follows the fields included in the query:

A virtual table is joined only when one of its fields is selected, filtered, or sorted, just like any other joined table. If the query uses no repeated leaf, Lightdash does not add UNNEST, and the query stays at the model’s grain.
When the query uses a field from a virtual table, the join introduces one row per array element before Lightdash groups the results by the selected dimensions. A parent with an empty or NULL array contributes one row with NULL virtual-table fields.
Metrics defined on the model pass through Lightdash’s existing primary-key deduplication. They remain correct at element grain when the model declares a primary_key.
Metrics defined on a repeated leaf or scalar array are calculated at element grain.
A filter on a repeated leaf keeps only matching element rows. Parents with no matching element are excluded, and Lightdash does not restore the other elements from a parent after one element matches.
Grand totals in the results table drop dimensions. If a query’s only repeated fields are dimensions, its grand total is calculated at model grain.

Query warnings

The Query warnings icon next to Run query shows warnings about combinations that can inflate metrics.

When two repeated columns that are not nested inside one another are selected together, Lightdash shows this warning once per query and only for the deepest virtual tables. For example, if orders also has a repeated shipments column, selecting fields from both line_items and shipments shows:
Repeated columns “orders__line_items” and “orders__shipments” are unnested together, so each row pairs their elements and metrics can be inflated.
A nested chain such as line_items and line_items.discounts does not trigger this warning.
When a metric on a virtual table is queried with a deeper or sibling unnest, Lightdash shows:
Metric “Total revenue” could be inflated by another unnested repeated column.
The existing could be inflated due to join relationships warning still applies to model metrics that Lightdash cannot deduplicate, including metrics on a model without a primary_key.

Pre-aggregates

Reference virtual-table fields with the virtual-table name as their table prefix:

models:
  - name: orders
    config:
      meta:
        pre_aggregates:
          - name: revenue_by_sku
            dimensions:
              - orders__line_items.sku
            metrics:
              - orders__line_items.total_revenue

models:
  - name: orders
    meta:
      pre_aggregates:
        - name: revenue_by_sku
          dimensions:
            - orders__line_items.sku
          metrics:
            - orders__line_items.total_revenue

Deploy and generate

Explores compile in the CLI during lightdash deploy, and the CLI reads the nested-column setting from the Lightdash server. Before deploying, update the Lightdash CLI. If the CLI cannot reach the server or read the setting, it compiles with nested-column support disabled and silently drops repeated leaves from the Explore. On self-hosted deployments, add unnest-repeated-columns to LIGHTDASH_ENABLE_FEATURE_FLAGS; see Feature flags. lightdash generate does not generate an entry for a container column or any leaf below a repeated column. Add those entries to the generated YAML by hand.

Known limitations

Only BigQuery is supported.
To access an array element by index, such as line_items[0].sku, define a dimension with custom sql.
Record and array containers are not selectable as fields. A scalar array exposes its elements through the virtual table’s value dimension.
Selecting two repeated columns that are not nested inside one another multiplies their rows. See Query warnings.
SQL Runner and virtual views type nested columns but do not expand them.
